ODDTOOLS 40A MPPT Solar Charge Controller, 12V / 24V Auto DC Input, Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging
ODDTOOLS 40A MPPT Solar Charge Controller, 12V / 24V Auto DC Input, Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging
Regular price
$101.99 USD
Regular price
$106.99 USD
Sale price
$101.99 USD
Unit price
per
In stock
people are viewing this right now
Hurry Up! only 19 left in stock!
Couldn't load pickup availability
About this item
- Efficient Charging: Utilizing advanced MPPT technology, surpassing traditional PWM charging technology by 15-30%, and achieving an ideal conversion efficiency of up to 98%. This means faster charging times, higher energy utilization, and longer-lasting operation for your devices.
- Versatile Compatibility: Suitable for various environments and devices, from home solar power systems to mobile photovoltaic systems. The solar charge controller can handle charging currents of up to 40A and supports a maximum solar panel power of 12V 520W / 24V 1040W. It's compatible with various common deep-cycle sealed batteries (AGM), gel batteries, flood batteries, and lithium batteries.
- Easy to Use & Control: Equipped with a built-in Bluetooth module, allowing remote monitoring of important data for user convenience. The mppt solar controller helps users easily monitor and adjust the device's operating status. Additionally, it comes with a TTL communication interface, supporting the Modbus communication protocol for versatile functionality expansion and meeting various communication needs.
- High Stability: Automatic adjustment algorithms and support for current-limiting charging mode ensure stable operation even in extreme conditions, such as high temperatures up to 50°C (122°F) or low temperatures down to -20°C (-4°F), as well as during high charging power situations.
- Enhanced Security: Offers all-around electronic protection features, including battery reverse protection, PV reverse protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection. These features ensure the security and long-term use of the device.
ODDTOOLS 40A MPPT Solar Charge Controller, 12V / 24V Auto DC Input, Solar Panel Regulator Charger with Bluetooth Module, 98% Charging Efficiency for Sealed(AGM), Gel, Flooded and Lithium Battery Charging
Regular price
$101.99 USD
Regular price
$106.99 USD
Sale price
$101.99 USD
Unit price
per

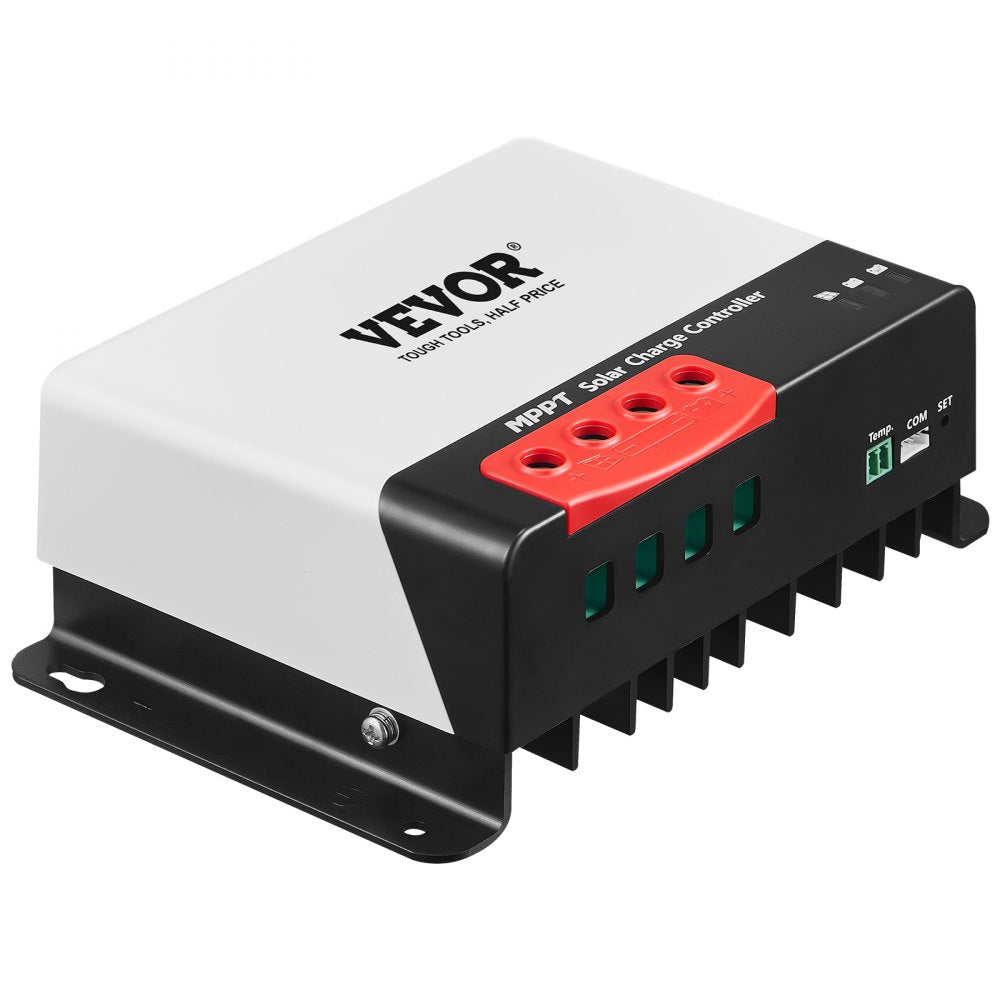

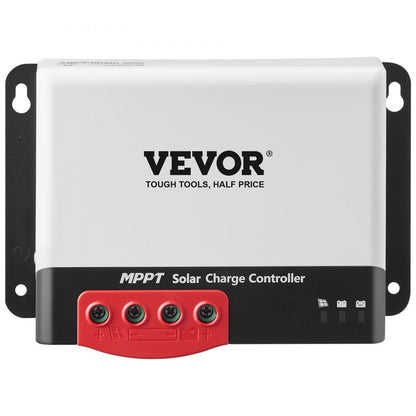

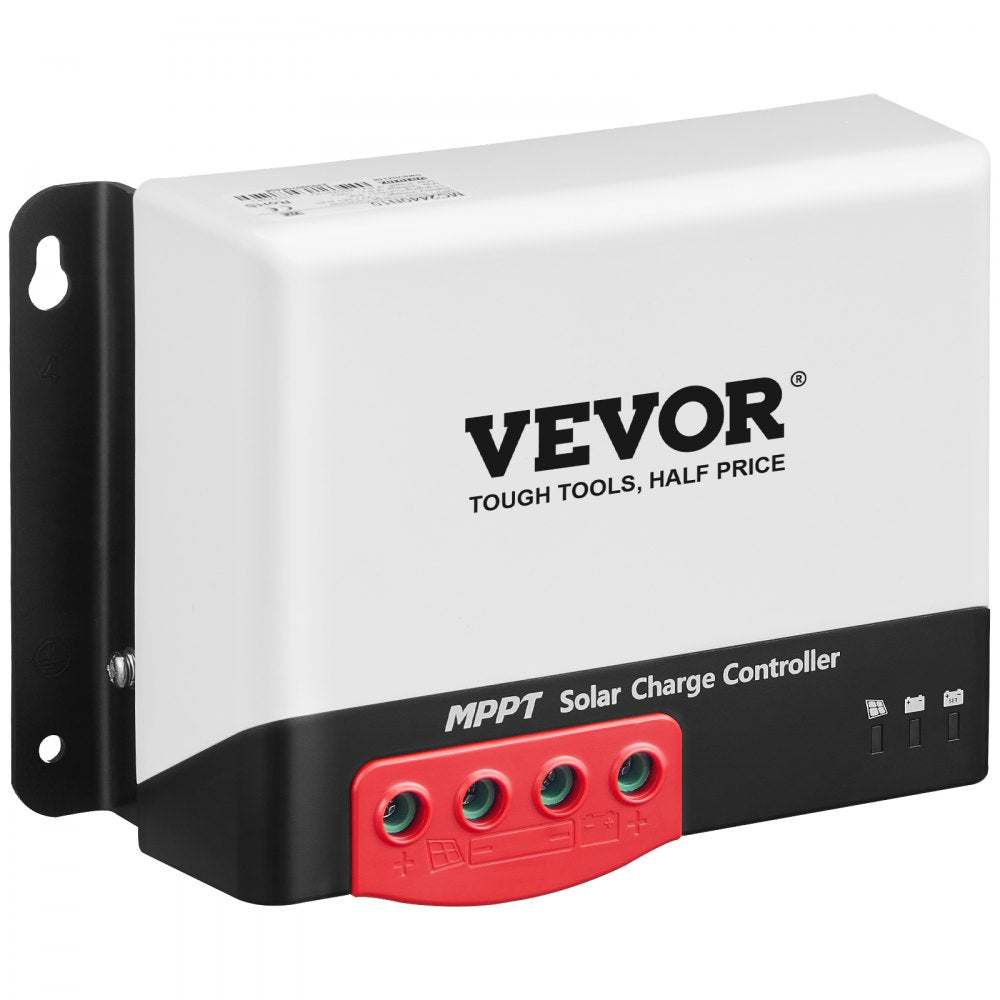

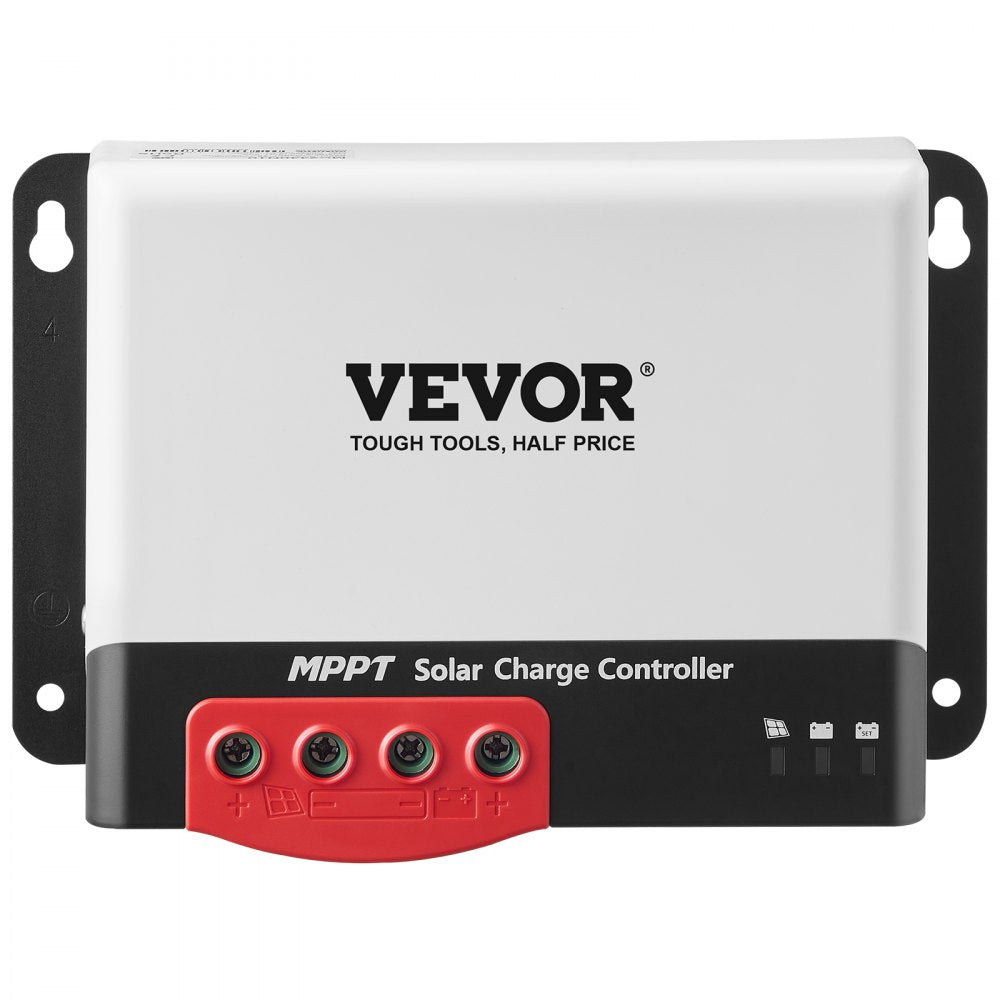

40A MPPT Solar Charge Controller

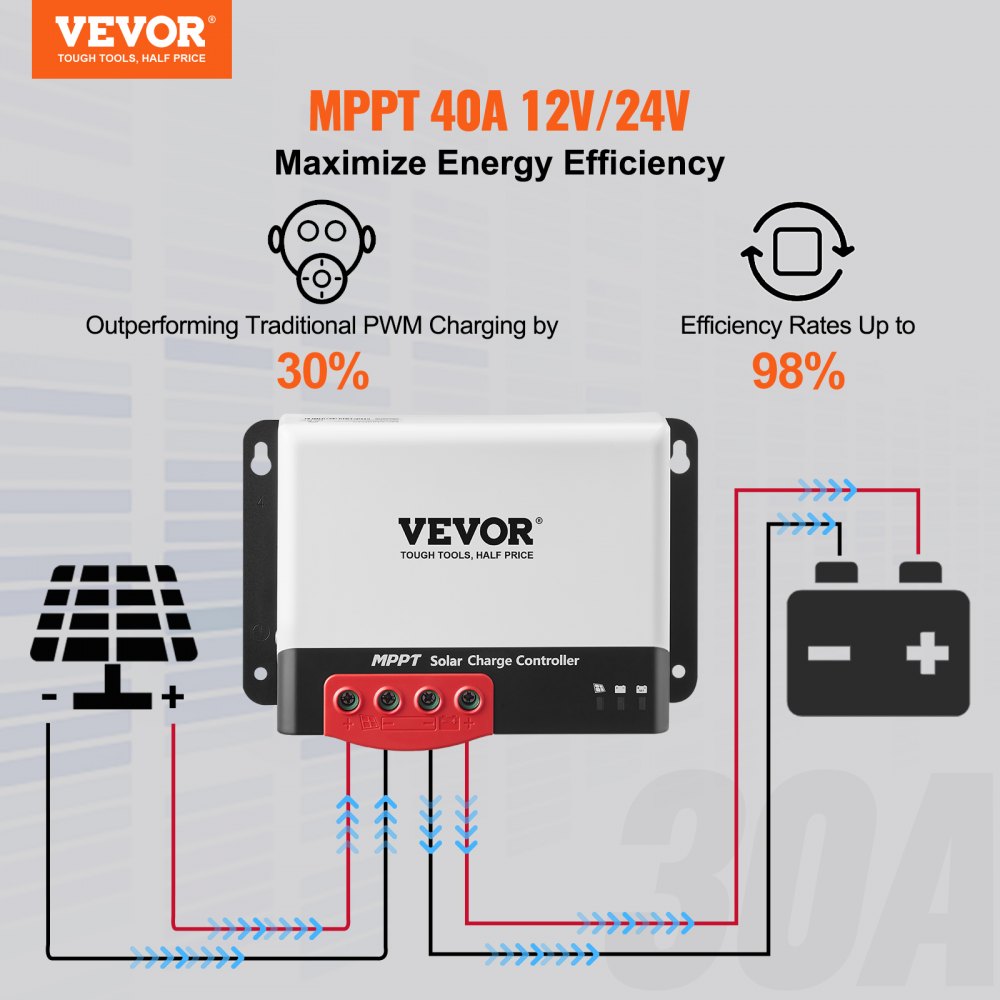

Outperforming traditional PWM charging techniques by 15-30%, achieving a conversion efficiency of up to 98%. Enhance energy utilization for prolonged device operation.

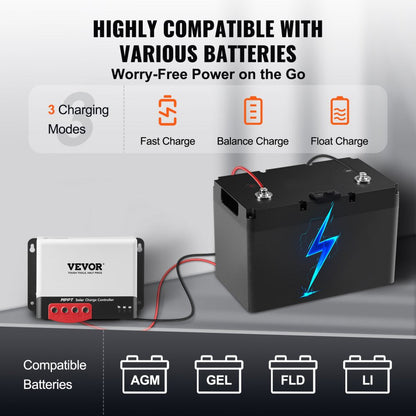

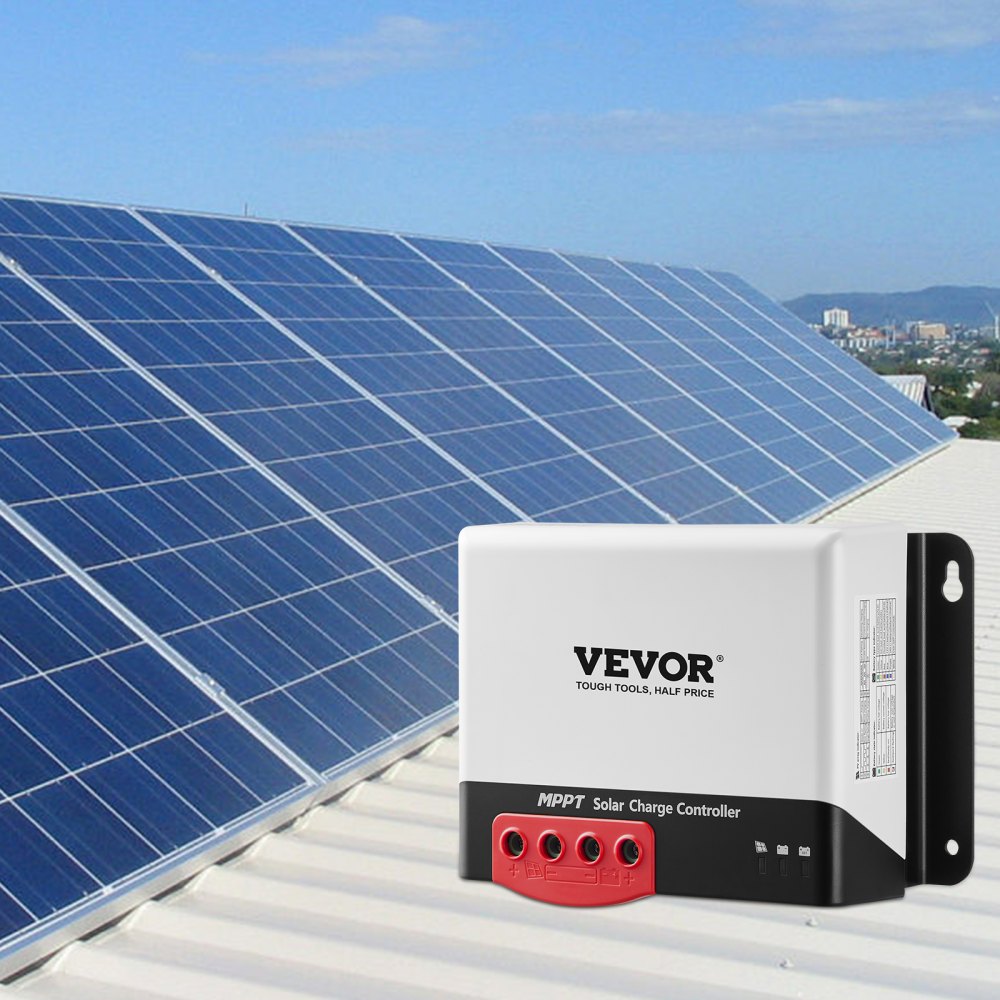

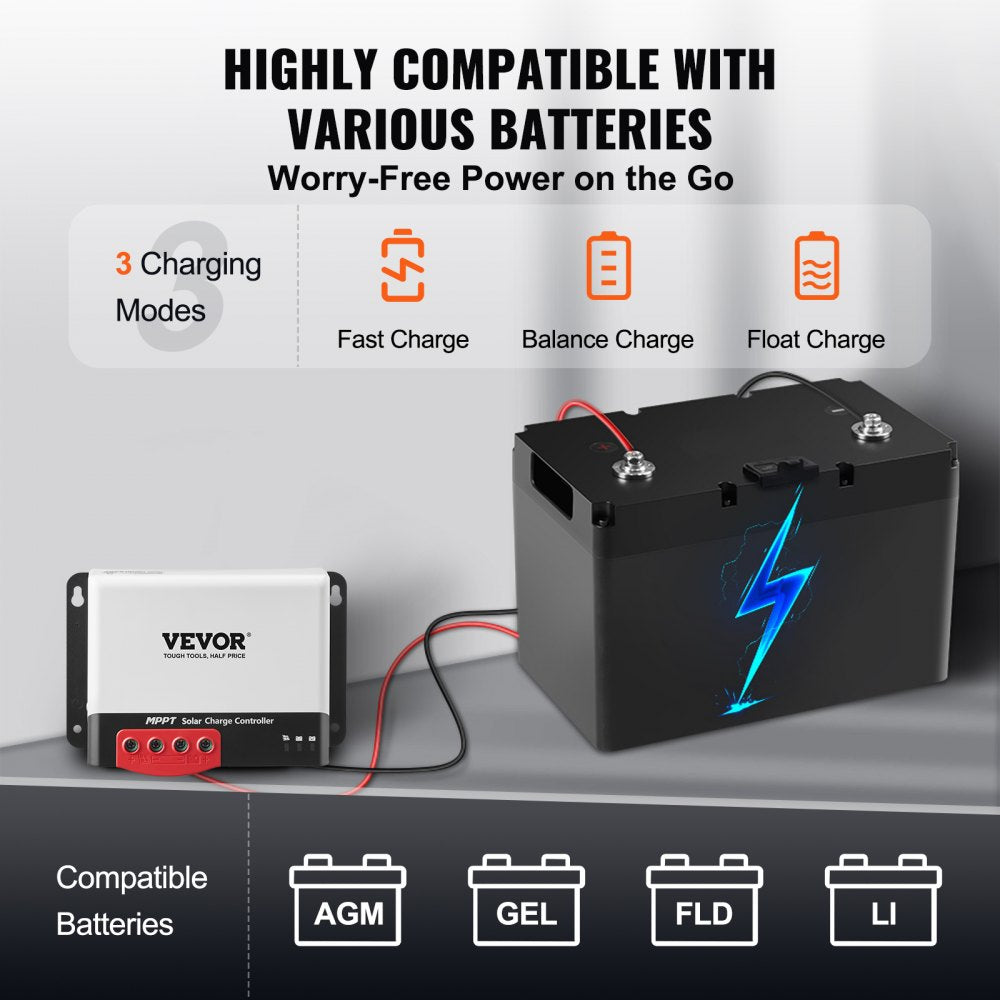

Suitable for various environments and devices, from home solar systems to mobile photovoltaic systems, and supports a maximum solar panel power of 12V 520W / 24V 1040W; compatible with various common deep-cycle sealed batteries such as AGM, gel, flooded, and lithium batteries.

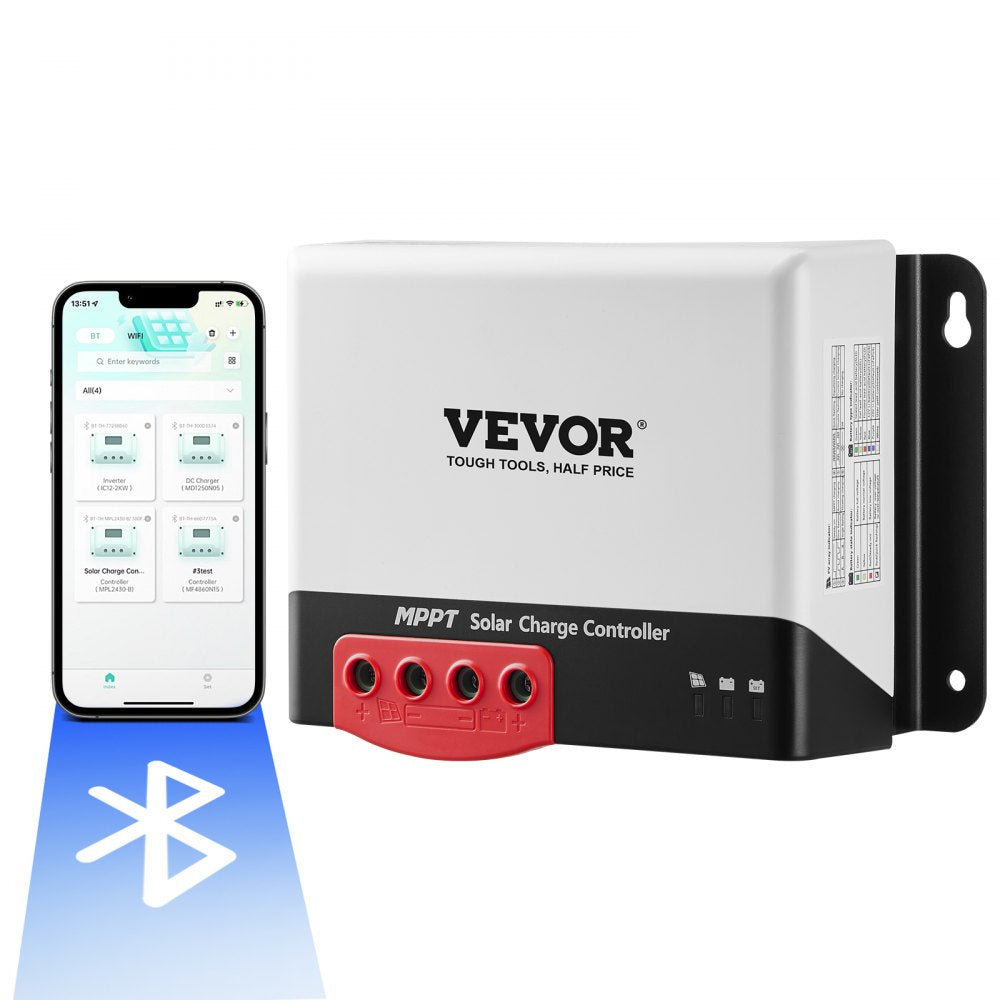

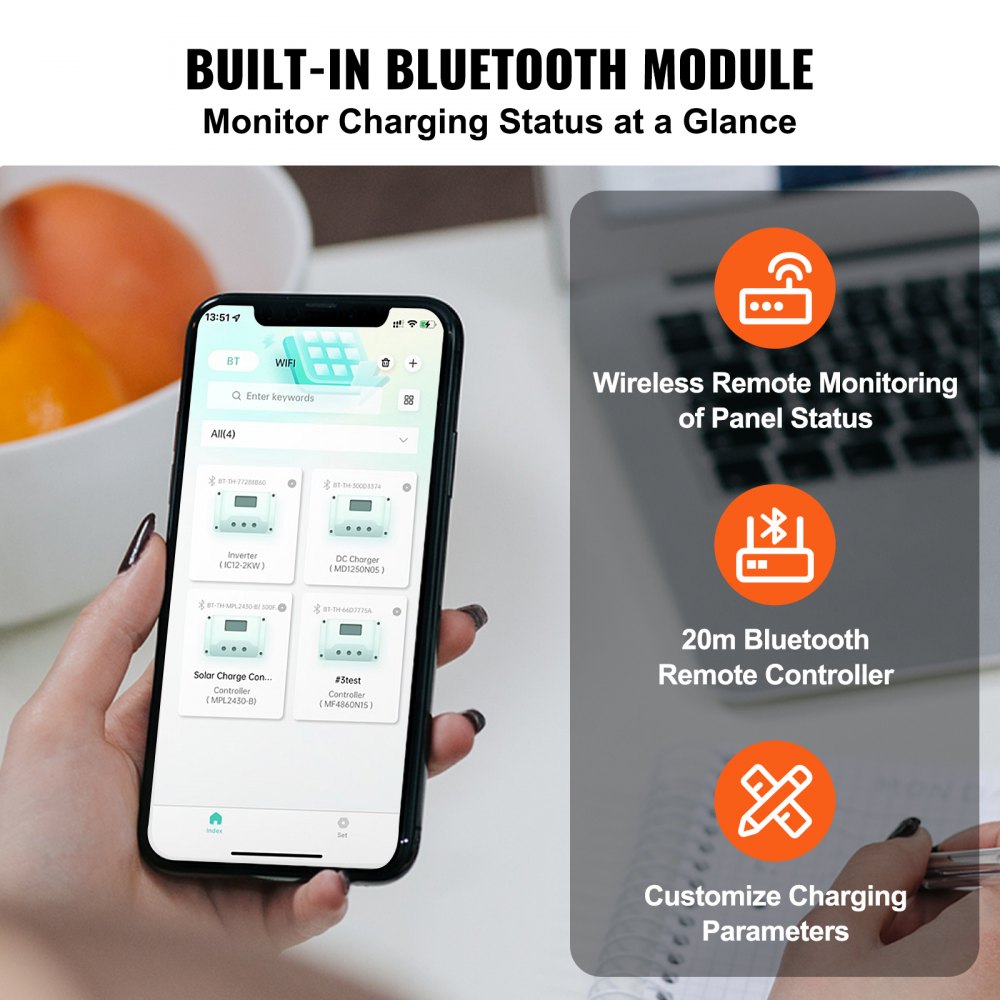

Equipped with a built-in Bluetooth module, allowing users to remotely view essential data within a 20-meter range, making the mppt solar controller more convenient for users to monitor and adjust the device's operational status.

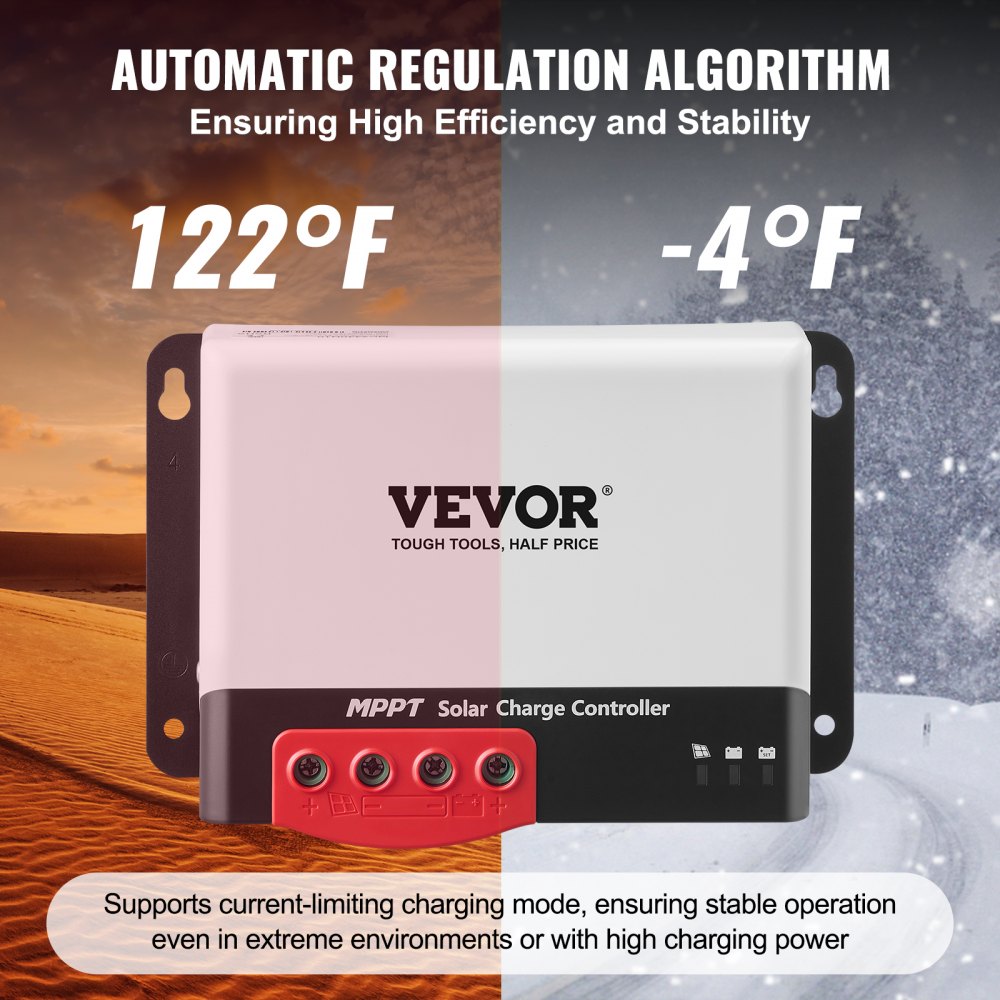

The automatic regulation algorithm supports current-limiting charging mode, ensuring stable operation even in extreme temperatures ranging from -20℃ to 50℃ (-4°F to 122°F) or when the charging power is excessively high.

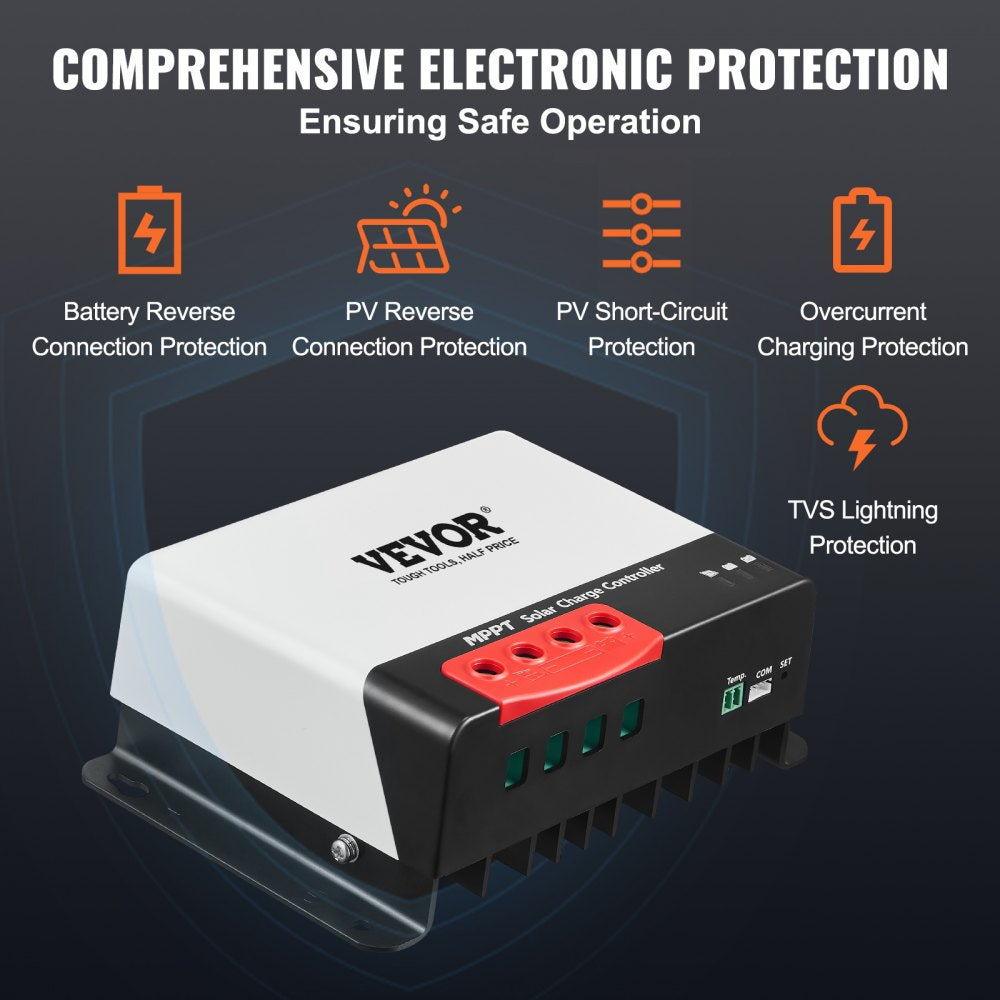

This charge controller 12V/24V features comprehensive protection functions, including battery reverse connection protection, PV reverse connection protection, PV short-circuit protection, overcurrent protection during charging, and TVS lightning protection, among others.
Specification
- Item Model Number
- MC2440N10-B
- Charging Current(DC)
- Max. 40A
- Applicable Battery Voltage(DC)
- 12V/24V Auto
- Solar Panel Open Circuit Voltage
- Max. 100V DC
- Rated Input Power
- 12V/520W; 24V/1040W
- MPPT Control Efficiency
- ≥98%
- Charging Modes
- Fast Charge, Balance, Float
- External Communication
- Built-in Bluetooth Module, Control via Neutral App
- External Temperature Sensor
- Supported
- Main Material
- ABS+PC
- Operating Temperature Range
- -20°C to 50°C/-4°F to 122°F
- Product Net Weight
- 1.33 kg/2.93 lbs

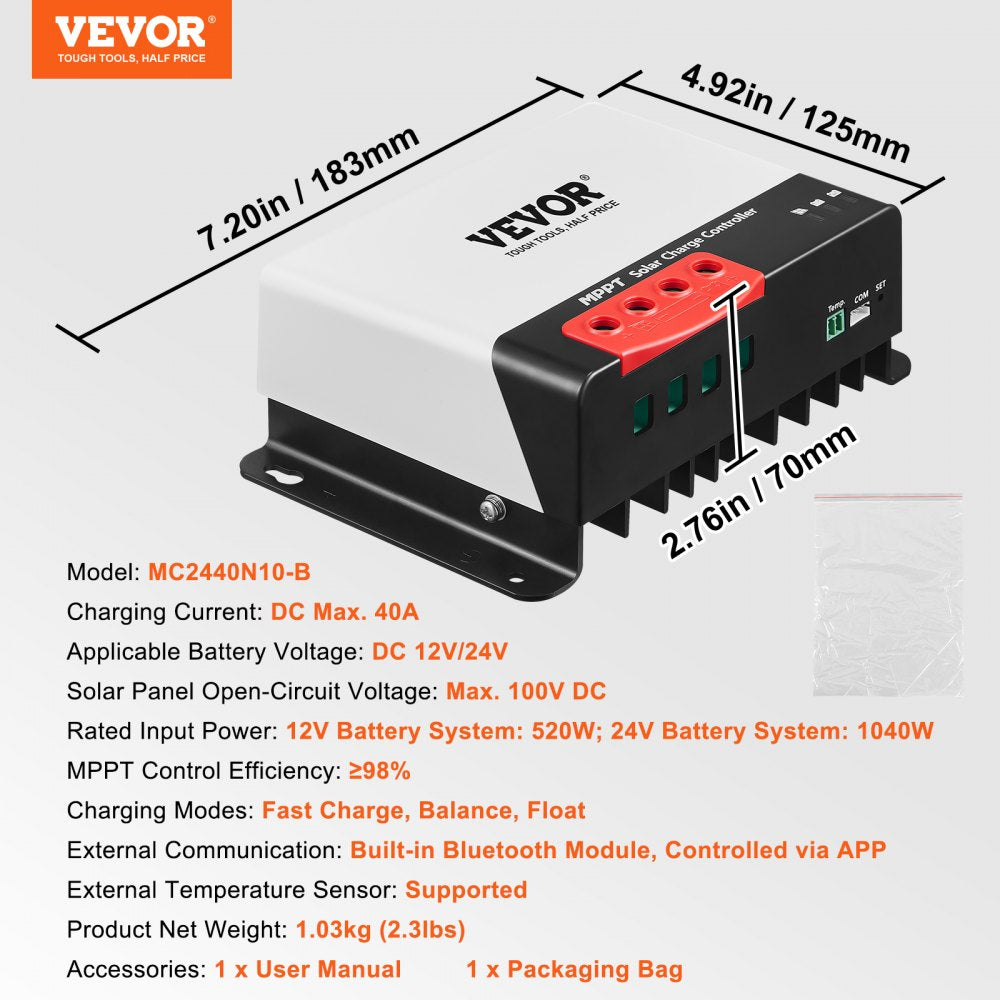

- Product Dimensions
- 183 x 125 x 70 mm/7.20 x 4.92 x 2.76 inches
- Package Dimensions
- 240 x 190 x 130 mm/9.45 x 7.48 x 5.12 inches
